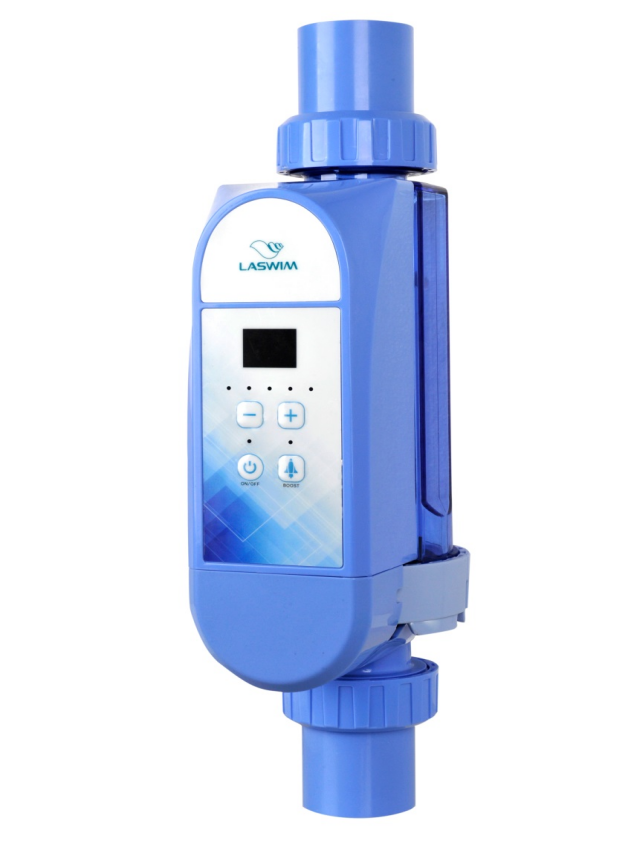

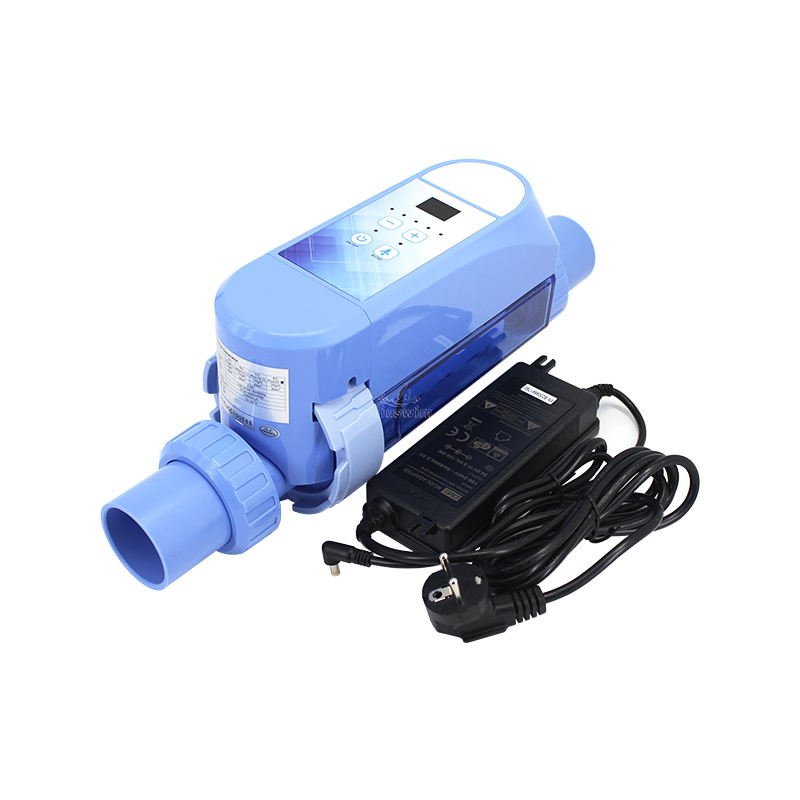

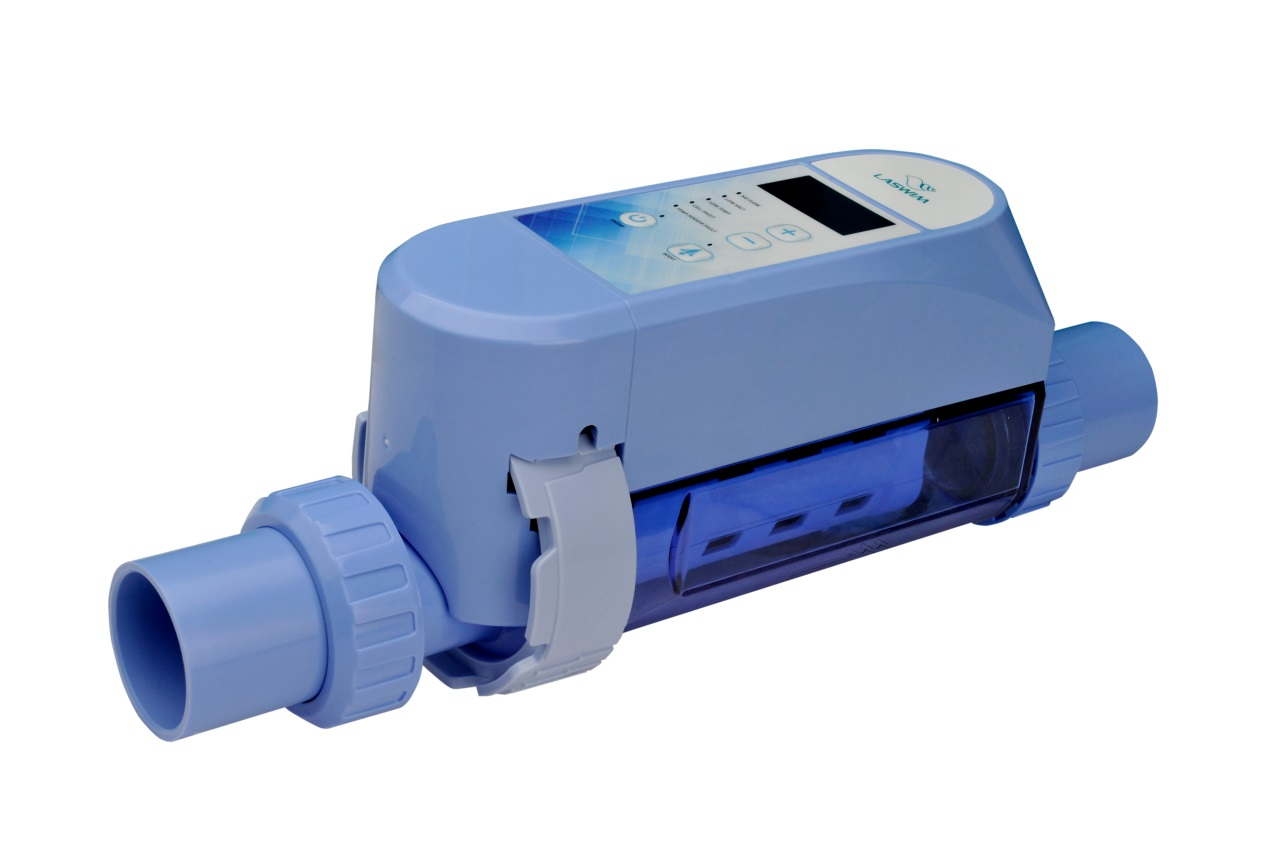

EC PLUS SERIES SALT CHLORINATOR
Using salt electrolysis method to create chlorine has been proven an economical, advanced, practical and reliable way to ensure the sanitization of pool water for small and medium pools. This method has been adapted and used all over the world.
The LASWIM EC Plus Series Salt Chlorinator applied advanced micro-computer technology and customer oriented design, to provide the most energy saving and environmental friendly method to sanitize small and medium pools. To achieve this simple, smart and safe chlorine production, all the chlorinator require is only salt.
Simple
Simple to use
Simply put a corresponding amount of salt into the pool,the EC Plus series salt chlorinator will produce chlorine needed for disinfection automatically.
Simple to operate
The Push-button operation and the easy-to-view display guarantee its fast operation.
Simple to install
The smart structure of combined with control panel and cell, making the installation simple and easy.
Simple to maintain
The titanium in the cell is removable, which makes it easy to clean and maintain.
Smart
Smart adiustment
Chlorine output is adjustable from 20% to 100% by simply pressing two button, satisfying different needs for different pools.
Smart cleaning
Self-cleaning function by reversing the polarity automatically, which prevents calcium from accumulating and therefore prolong the cell’s lifetime.
Smart alarm
Fault auto alarm with error code, which is easy to find corresponding solutions.
Smart protection
When the water temperature is too high or too low, the chlorinator will have warning, in order to protect the unit and prolong the cell’s life. The integrated sensors in the cell also ensure that water flow is adequate for safe chlorine generation.
Smart memory system
Each time the chlorinator restarts, it can automatically initiate the last work status, with this smart memory function
Safe
Safe disinfection
Different from those traditional disinfecting equipments, this salt chlorinator doesn’t produce any disgusting smells. Discomfort like pinkeye or skin itch can be avoided as well.
Safe water quality
The salt concentration in the pool matches that of the human body, which does not irritates the skin and improves the swimming experience.
Safe voltage
Working voltage is 24V, which keeps people safe from the danger of electrocution.

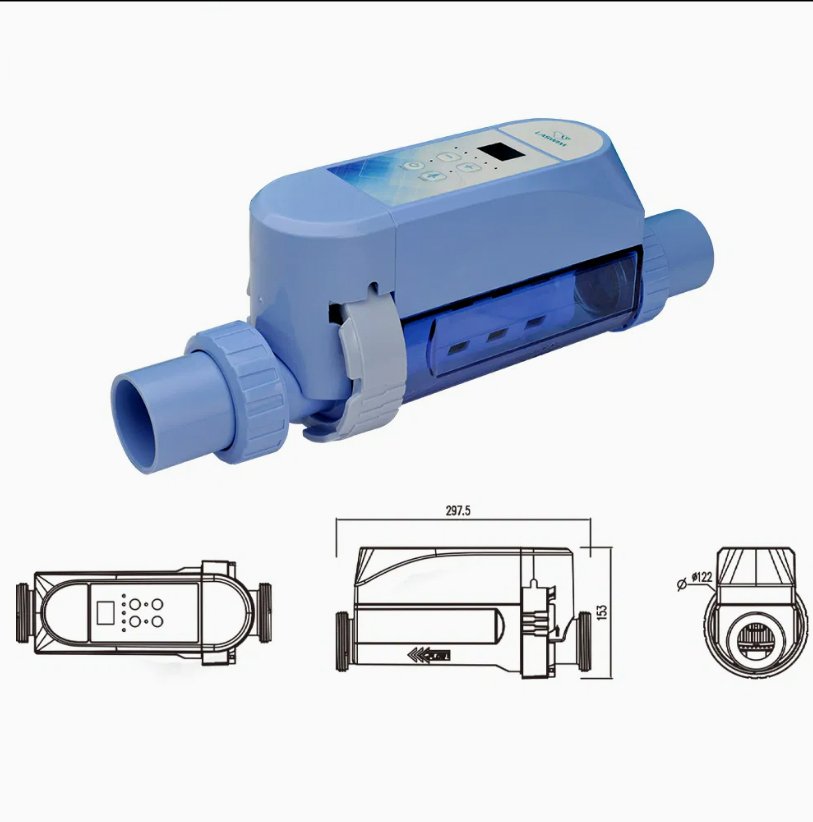

| Model | Size(mm) | Max Chlorine production(g/h) | Power Input(V) | Power Output(V) | Working Current(A) | Dia.of Water Inlet and Outlet | Max Pool Volum(m³) |
| WL-EC Plus 8 | 297.5*122*153 | 8g/h | AC100-240V | DC24V | 4 | 1.5″/50mm | 35 |
| WL-EC Plus 12 | 297.5*122*153 | 12g/h | AC100-240V | DC24V | 4 | 1.5″/50mm | 50 |
| WL-EC Plus 16 | 297.5*122*153 | 16g/h | AC100-240V | DC24V | 4 | 1.5″/50mm | 68 |
| WL-EC Plus 20 | 297.5*122*153 | 20g/h | AC100-240V | DC24V | 4 | 1.5″/50mm | 85 |
| WL-EC Plus 30 | 297.5*122*153 | 30g/h | AC100-240V | DC29V | 6 | 1.5″/50mm | 127 |

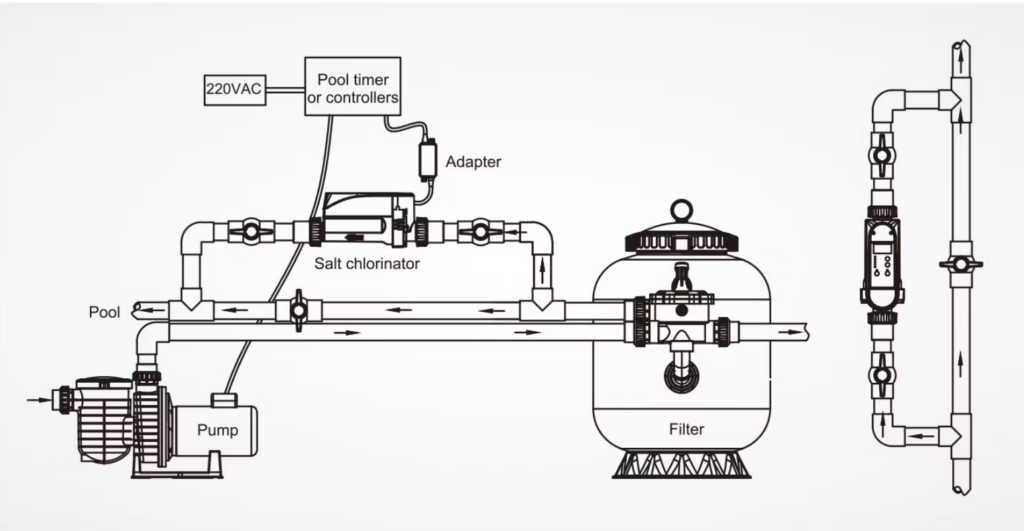

Installation diagram
